Site welfare is easy.
For sales, demonstrations, support & advice

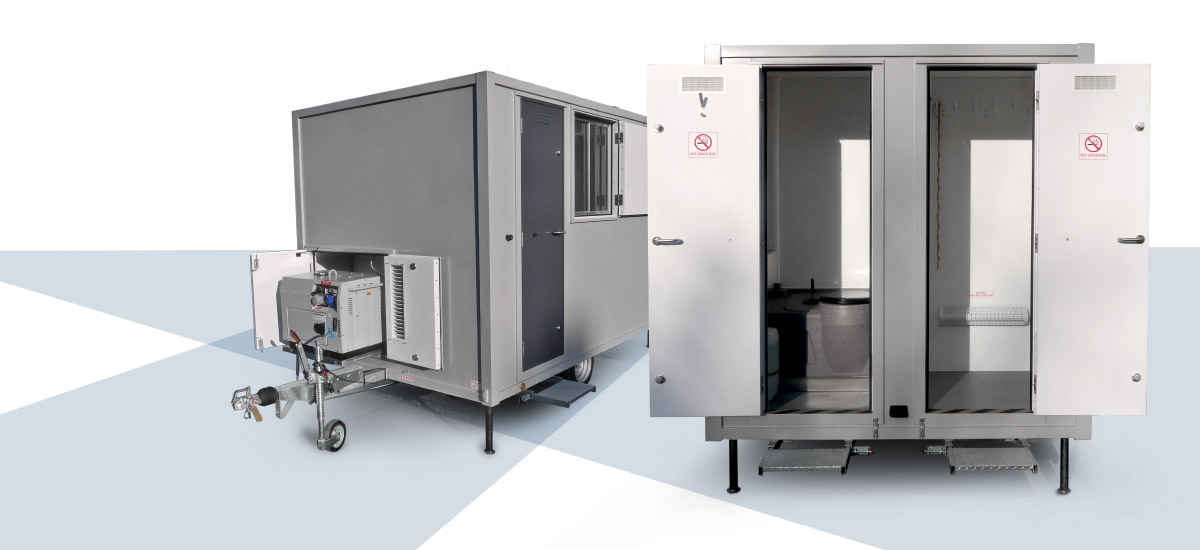

The EasyCabin 12 Welfare Unit - Straightforward comfortable canteen facilities for six people with separate toilet and drying room.

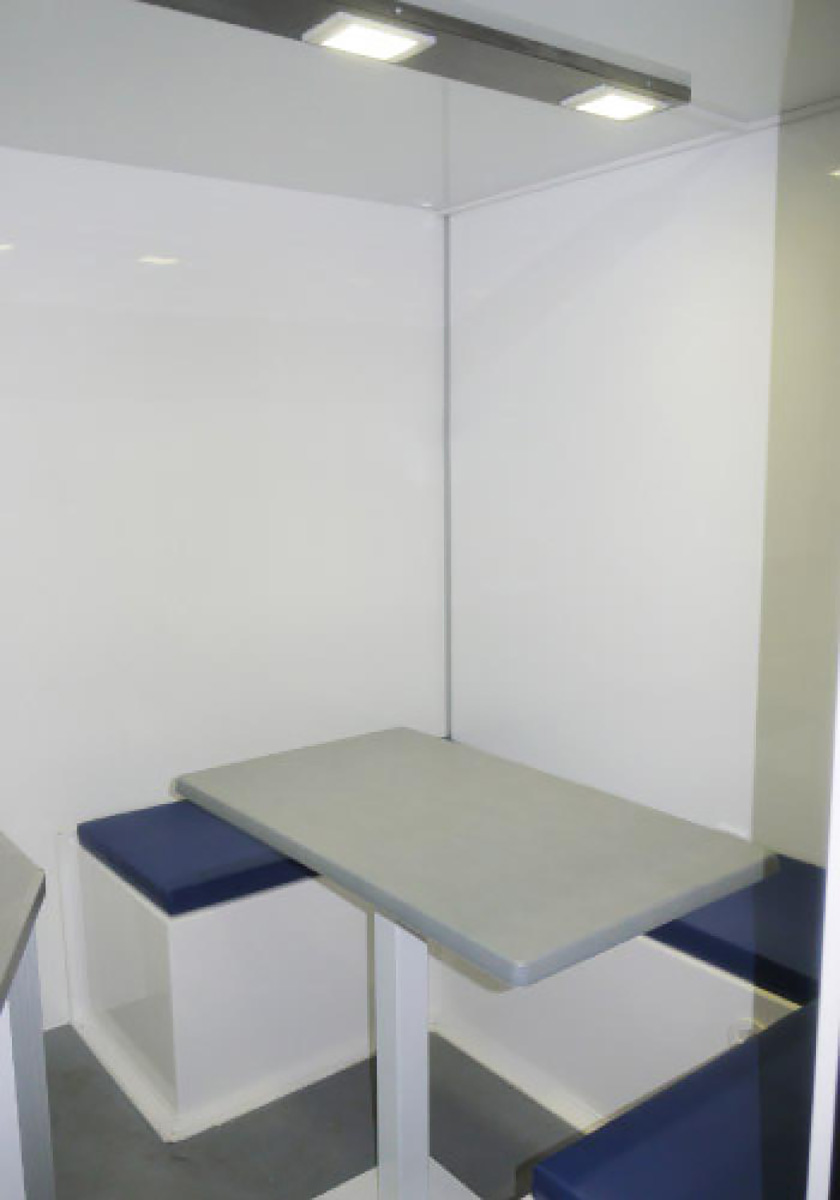

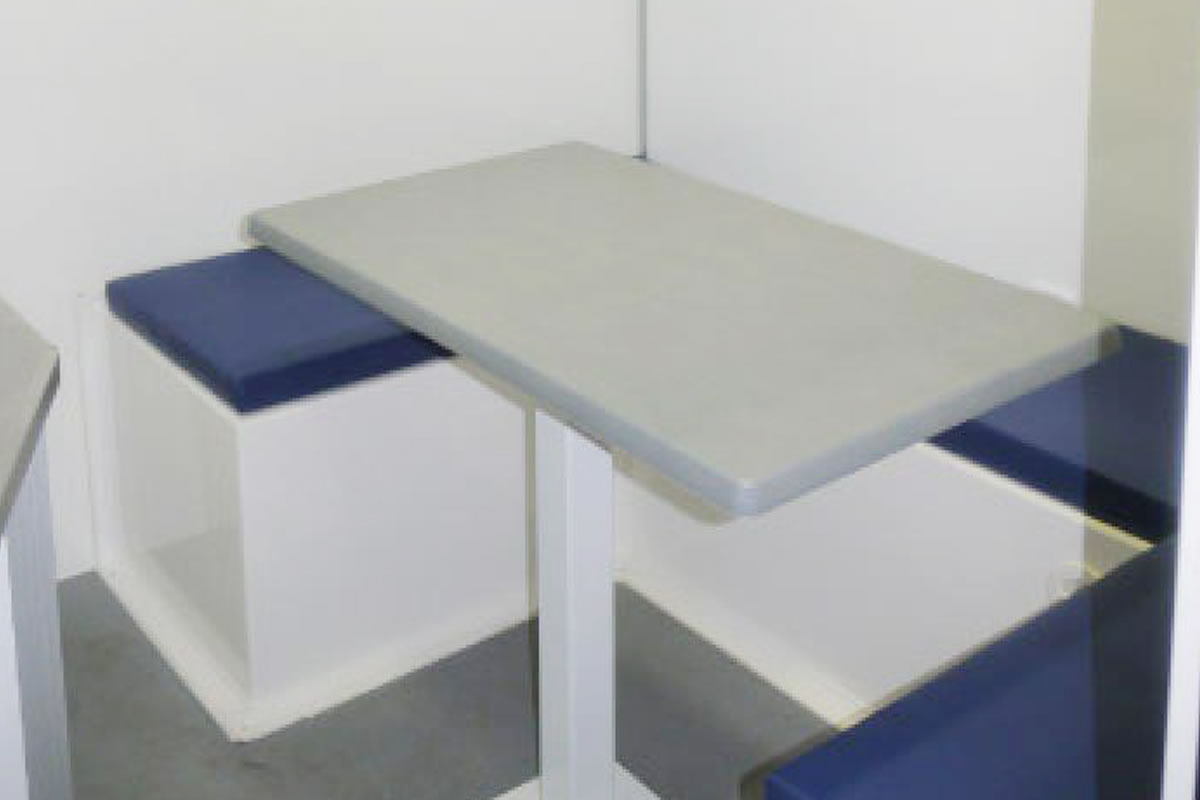

Canteen and bench seating for 6 people
Separate toilet and drying room
Exceptional value, entry level model

The EasyCabin 12 has bench seating for 6 people and a wall heater with thermostatic control, microwave oven and kettle. All power comes from a 230v supply direct from the 5.5Kva generator.

For easy cleaning the EasyCabin 12 is fitted with durable stainless steel worktops, alongside a stainless steel sink, with hot wash facilities.

Lighting is provided via a single 1200mm moisture proof fluorescent light with a moisture resistant light switch. For added safety the EasyCabin 12 has a carbon monoxide detector.

1560kg
Unladen weight
1800kg
Gross weight

W 2420
L 4875
H 2700

Dimensions (mm)

Available layouts

Open plan
layout

Bench seating for 6

Separate drying room & toilet

Specifications

Canteen

  • Bench seating for 6 people
  • Wall heater with thermostatic control
  • Microwave
  • Kettle
  • Formica worktop
  • Stainless steel sink
  • Running hot water
  • Single 1200mm moisture proof
  • Fluorescent light
  • Moisture resistant light switch
  • Carbon monoxide detector
  • Fresh, waste & drinking water
  • Containers
  • Soap dispenser
  • Towel dispenser
  • Cup dispenser
  • Double Socket
  • Consumer unit with electrical certificate

Power

  • 5.5kva Diesel generator with built in fuel tank
  • Slide out access for generator
  • Sound insulation to generator compartment

Drying Room

  • Coat hooks
  • PIR bulkhead light
  • Tube heater with cover

WC

  • Re-circulating flush tank toilet 80 litre capacity
  • Sink to wash up to forearm
  • Cold wash to sink
  • Coat hook
  • Soap dispenser
  • Towel dispenser
  • Toilet roll holder
  • PIR bulkhead light

Construction

Walls:

Constructed from high strength bonded GRP composite panels. Provides rust free and washable surfaces.

Roof:

Seamless insulated composite panel.

Floor:

15mm phenolic faced marine ply.

Wheels

185/70R 12” Low profile wheels & tyres.

Chassis

Heavy duty painted steel. 4 security prop stands and pull out steps

Axle:

AI-KO axle with sealed for life bearings.

Doors:

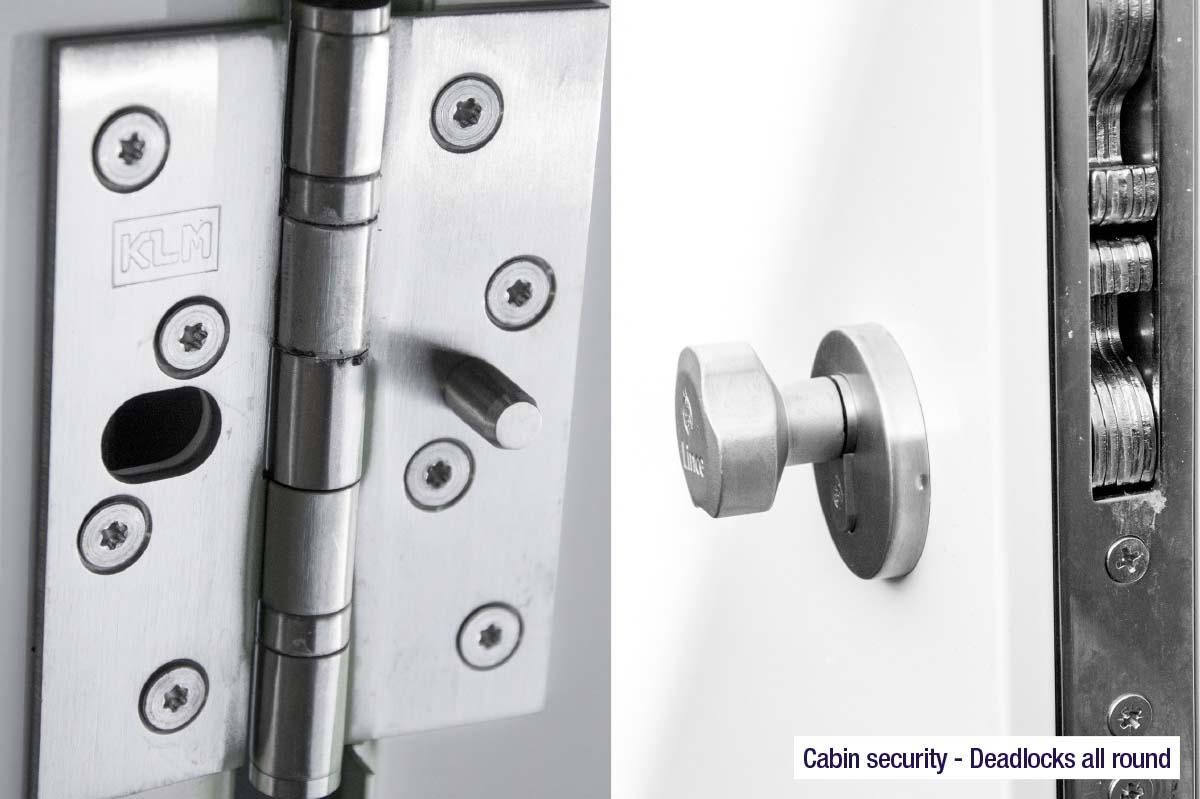

3 x high security composite doors with 2 deadlocks. Double doors to generator with 2 deadlocks.

Window:

Aluminium with security door locked internally with thumb turn deadlock.

Lights:

Built in road lights with removable number plate brackets.

Weight:

Gross weight 1800Kg - Unladen weight ONLY 1560Kg

Optional extras

  • Ceramic flush toilet
  • Available as a static unit
  • Custom layouts on request
  • Pin boards
  • White boards
  • Spare Wheels
  • Decals / Branding

12' welfare units - model comparison

Range Overview 12 12
EcoSmart
12 Xtra
EcoSmart
Hydraulic axles
EcoSmart Box
Canteen type Large Large Space saving
Seating x6 x6 x8

Media Gallery

As part of our on-going commitment to improvement we reserve the right to alter specifications, designs or figures, without prior notice. All dimensions and weights are approximate.
